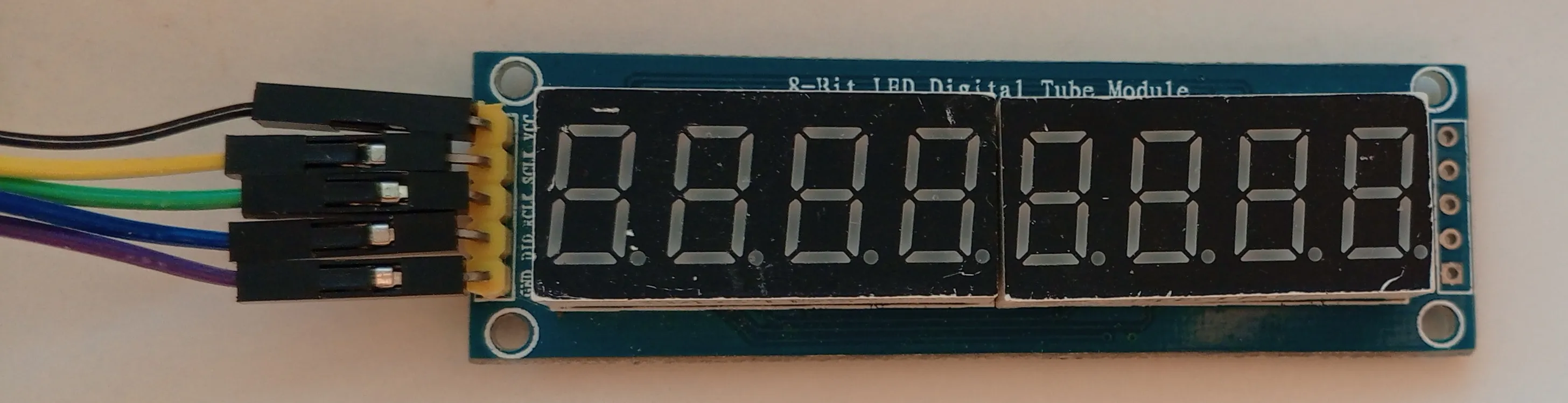

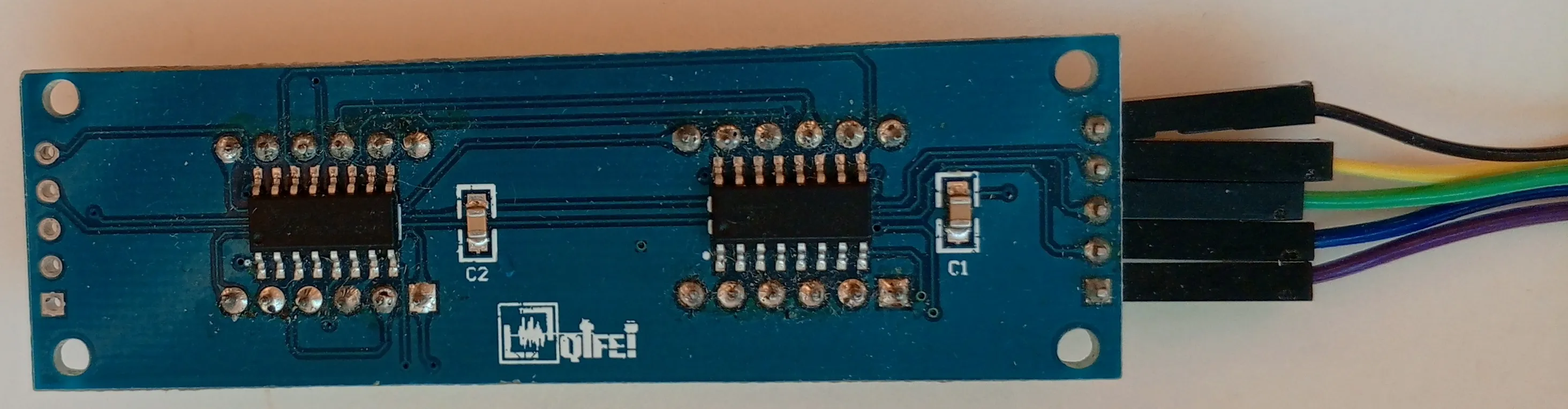

74HC595 7‑segment display with 8 digits and Arduino

1
/*
2
 * Pin connections for a 7‑segment display driven by 74HC595
3
 * Display[+5V]
4
 * Display[SCLK] → PIN6
5
 * Display[DIO]  → PIN5
6
 * Display[RCLK] → PIN4
7
 * Display[GND]
8
 */
9

10
const int Latch = 4;  // RCK
11
const int Clock = 6;  // SCK
12

13
const int Digits = 8; // Number of digits
14

15
const int Start = 1 << (Digits - 1);
16

17
/*
18
 * Encode the segments for each numeral
19
 */
20
//   Digits          0     1     2     3     4     5     6     7     8     9
21
byte symbolsEncoded[10] = {0xC0, 0xF9, 0xA4, 0xB0, 0x99,
22
                            0x92, 0x82, 0xF8, 0x80, 0x90};
23

24
/*
25
 * Decimal point for a digit
26
 */
27
byte pointDigit = 0x80;
28

29
// Screen buffer, left‑to‑right
30
byte screenBuffer[8] = {1,2,3,4,5,6,7,9};
31

32
void setup()
33
{
34
  // Set all used pins as outputs
35
  pinMode(Latch, OUTPUT);
36
  pinMode(Clock, OUTPUT);
37
  pinMode(Data, OUTPUT);
38

39
  Serial.begin(9600);
40
}
41

42
void loop()
43
{
44
  for (int i = 0; i < Digits; i++) {
45
    // To start communication with the display we pull the latch pin low.
46
    // While the latch is low we can shift out the value that encodes
47
    // the required segments for the desired digit position.
48
    digitalWrite(Latch, LOW);
49

50
    // First we send the byte that encodes the numeral from our buffer
51
    shiftOut(Data, Clock, MSBFIRST, symbolsEncoded[screenBuffer[i]]);
52

53
    // Then we send the byte that encodes its position
54
    shiftOut(Data, Clock, MSBFIRST, Start >> i);
55

56
    // Finally we “latch” the data: set the latch pin high.
57
    // If you don’t do this the display will show a garbled “mash”
58
    // of lit segments.
59
    digitalWrite(Latch, HIGH); // [!code focus]
60
  }
